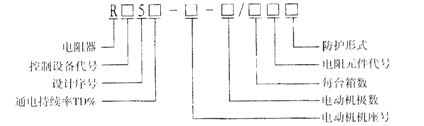

Ⅰ、Model meaning

Note: 1) Control equipment code
"T" -KT□Cam controller (asymmetrical resistance)
"K-KT□ cam controller (asymmetric resistance, one-phase open-circuit start of the rotor)
"Y" or "P" -PQR1, PQR3, PQR5, PQY1-6Y, QY1-6Y, PQK6401, etc. pan control panel (cabinet)
"S" or "St"-XQS single-phase braking type lifting control box: (five-stage resistance four-stage switching, six-stage resistance five-stage switching)
"Z" or "Ze"-XQZ type grab control box: (four-segment resistance and three-segment switching. Five-segment resistance and four-segment switching)
"Q"-XQR10 type is XQD6402 type lifting control box: (seven-segment resistance and six-segment switching)
"F"-QR2S two-stage reverse connection brake lift control box: (Note: The number of poles of the motor model is added with the word "J" for seven-segment resistance and six-segment switching.)
2) Power-on duration rate: "1"-15%; "2"-25%; "4"-40%; "6"-60%;
3) Code of resistance element
"H"-ZH1 or ZH3 type stainless steel plate punched mesh plate-shaped resistance element;
"B"-ZB1 or ZB2 type constantan tape or wire wound plate-shaped resistance element;
"D" or "Y"-ZD2 type iron-chromium-aluminum tape wound cylindrical resistance element;
"J" -ZJ1 type iron-chromium-aluminum belt tooth-shaped (also known as large wave-shaped) resistance element;

Ⅱ、R□5□ series AC crane complete resistance characteristic curve and wiring diagram mark

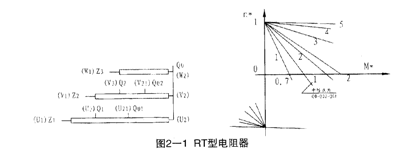

1.The markings of the terminals and resistance sections of RT resistors are shown in Figure 2-1
